Installing the Device on a Tripod

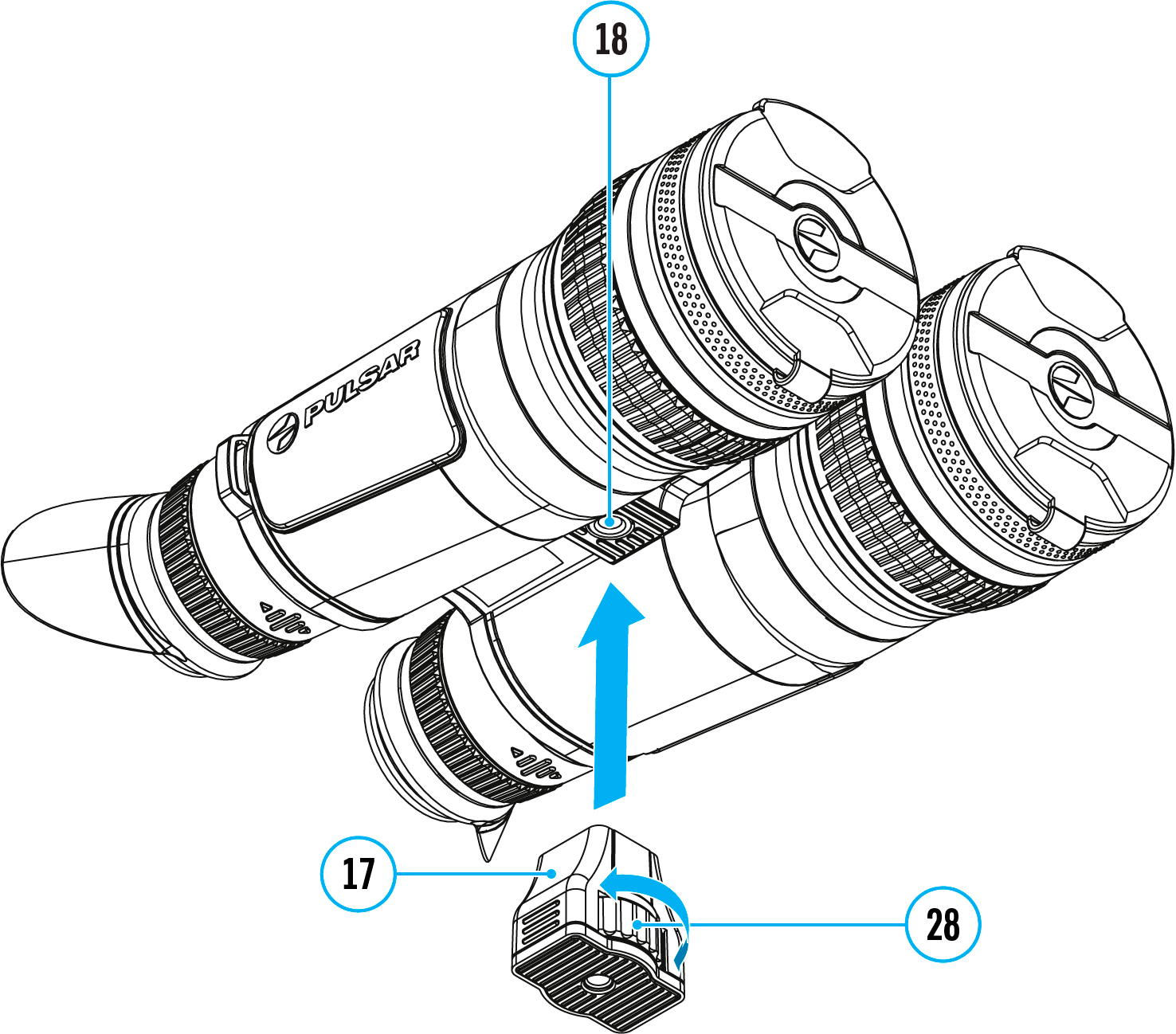

Using a tripod adapter



  1. Attach the tripod adaptor (17) to the socket (18).
  2. Screw the adapter wheel (28) clockwise until it stops.
  3. Secure the adaptor with the device on a tripod.

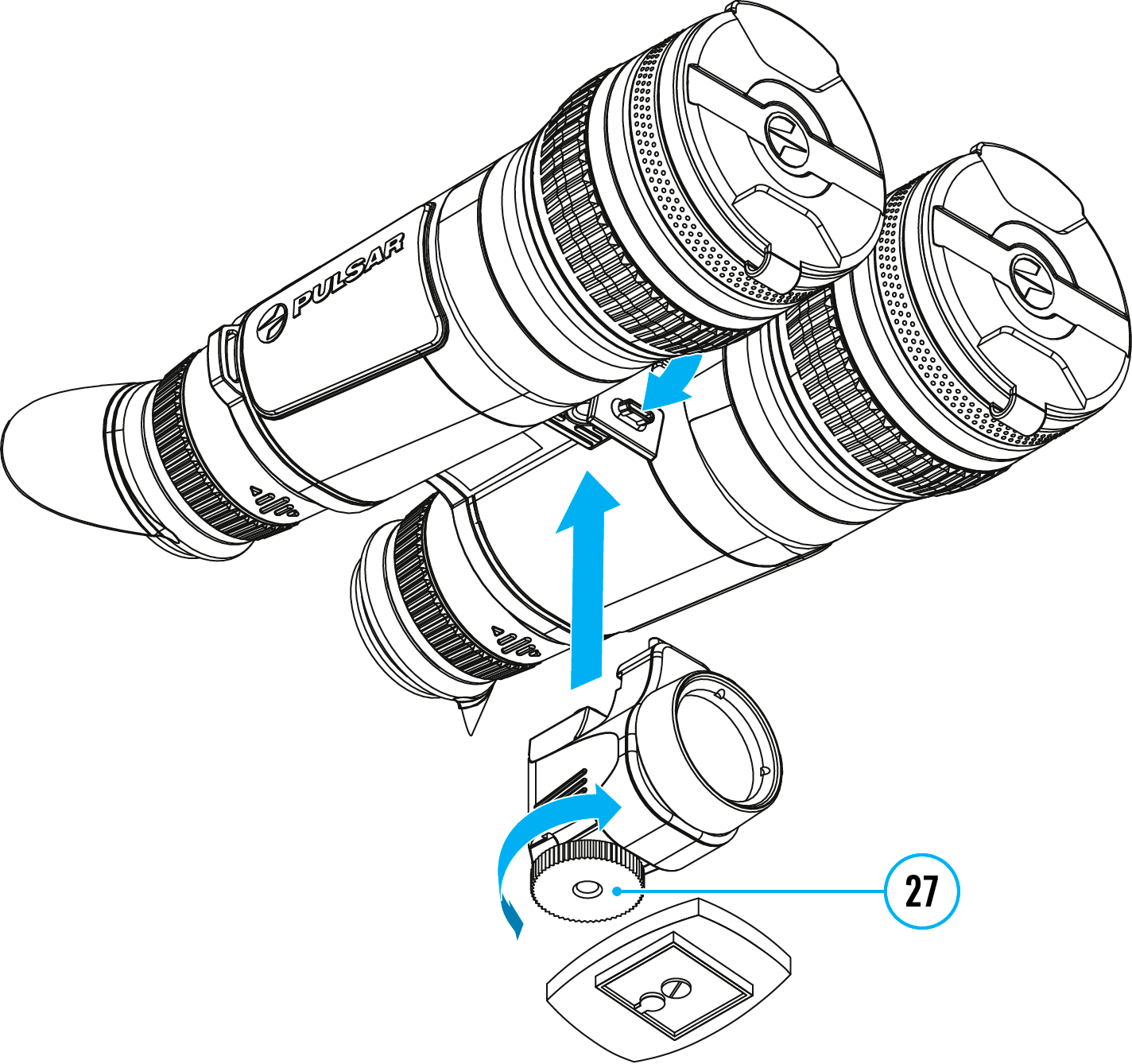

Using an IR illuminator

  1. Install the IR illuminator on the device.
  2. Screw the tripod adapter platform to the hole in the tripod screw (27).
  3. Install the device with the platform on a tripod.
