Show device diagram

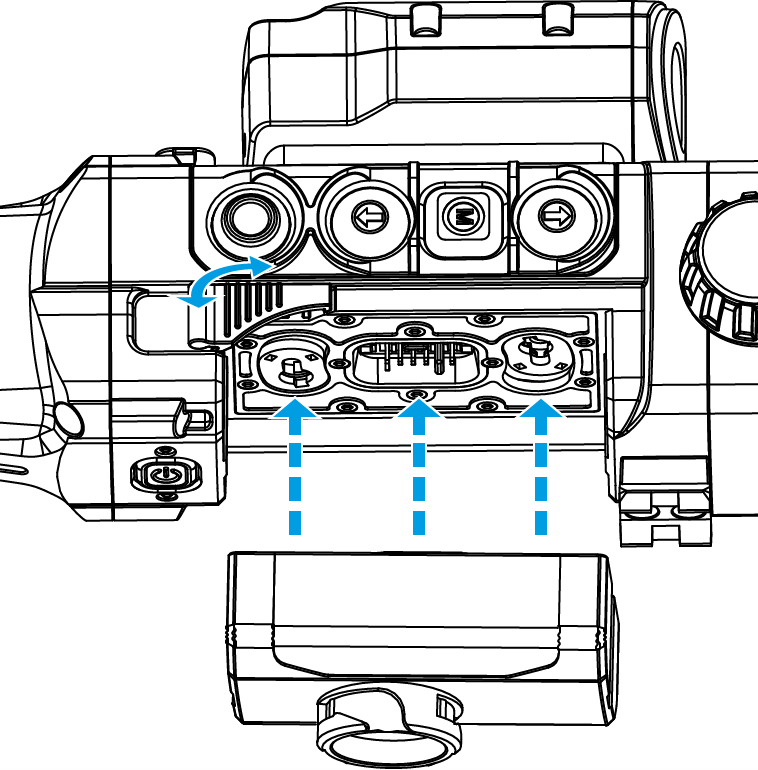

Remove the protective cover from the Battery Pack.
Raise the battery installation lever (19). Install the battery all the way into the slot on the riflescope body so that the groove on the IR illuminator connector is on top.
Fix the battery by clicking riflescope’s lever.
Make sure the battery is installed correctly by turning the riflescope on by double pressing the ON/OFF (18) button briefly. An image will appear on the display.
