Axion F
Manual
Axion F

Table of contents

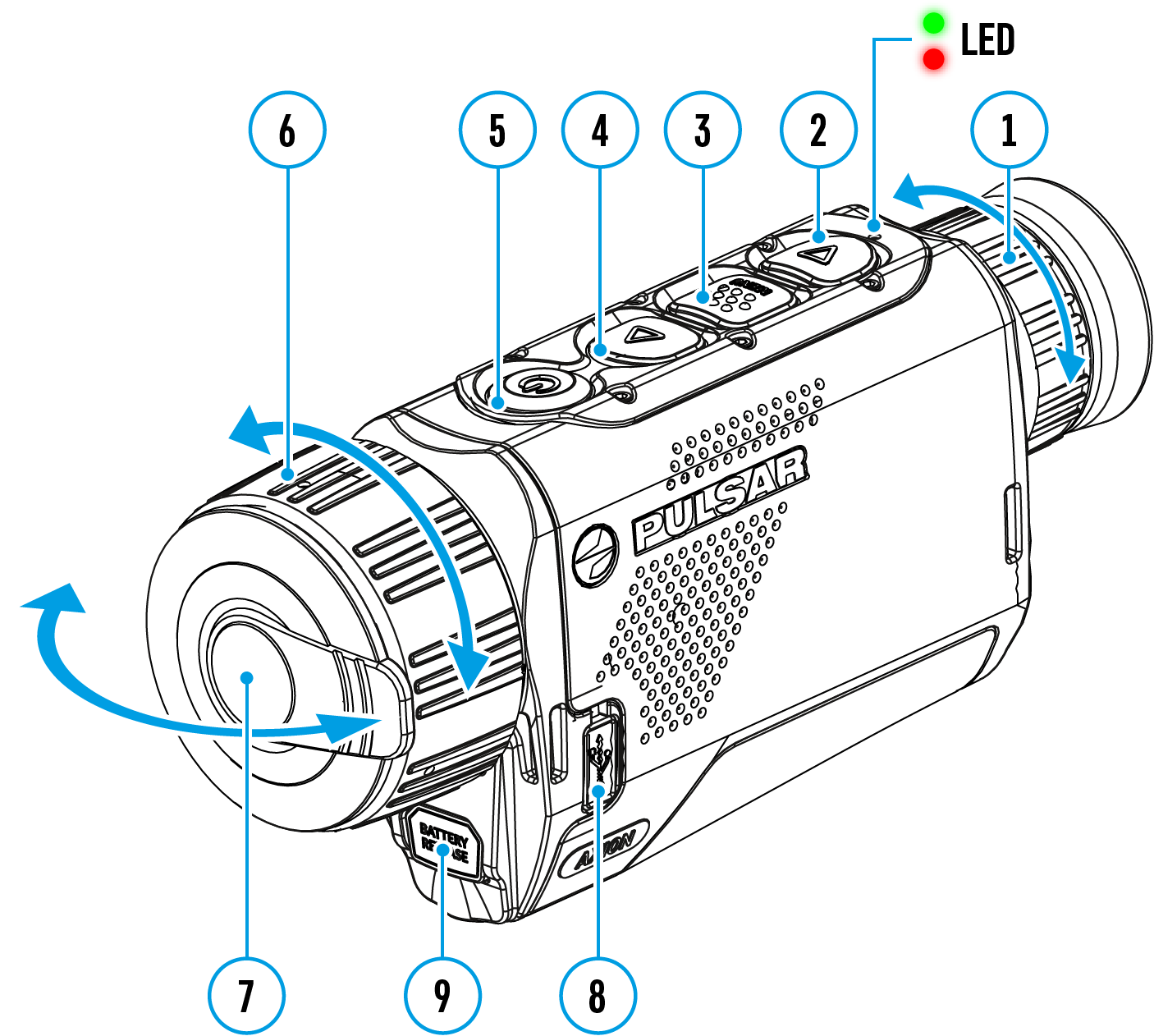

Components and Controls



  1. Eyepiece focus ring
  2. DOWN/REC button
  3. MENU button
  4. UP/ZOOM button
  5. Power ON/OFF/CALIBRATION button
  6. Lens focus ring
  7. Lens cover
  8. MicroUSB connector
  9. Battery release button

LED indicator displays the current status of the device:

LED Indicator

Operating Mode

Device is turned on

The device is turned on/video recording

The device is turned on/battery charge < 10%

The device is turned on/video recording/battery charge < 10%
