Battery Installation

Attention! Before installing the battery, make sure that there is an undamaged rubber insulating ring on the battery. The ring is designed to protect your device from moisture getting inside. To replace or purchase a ring, contact your local distributor.

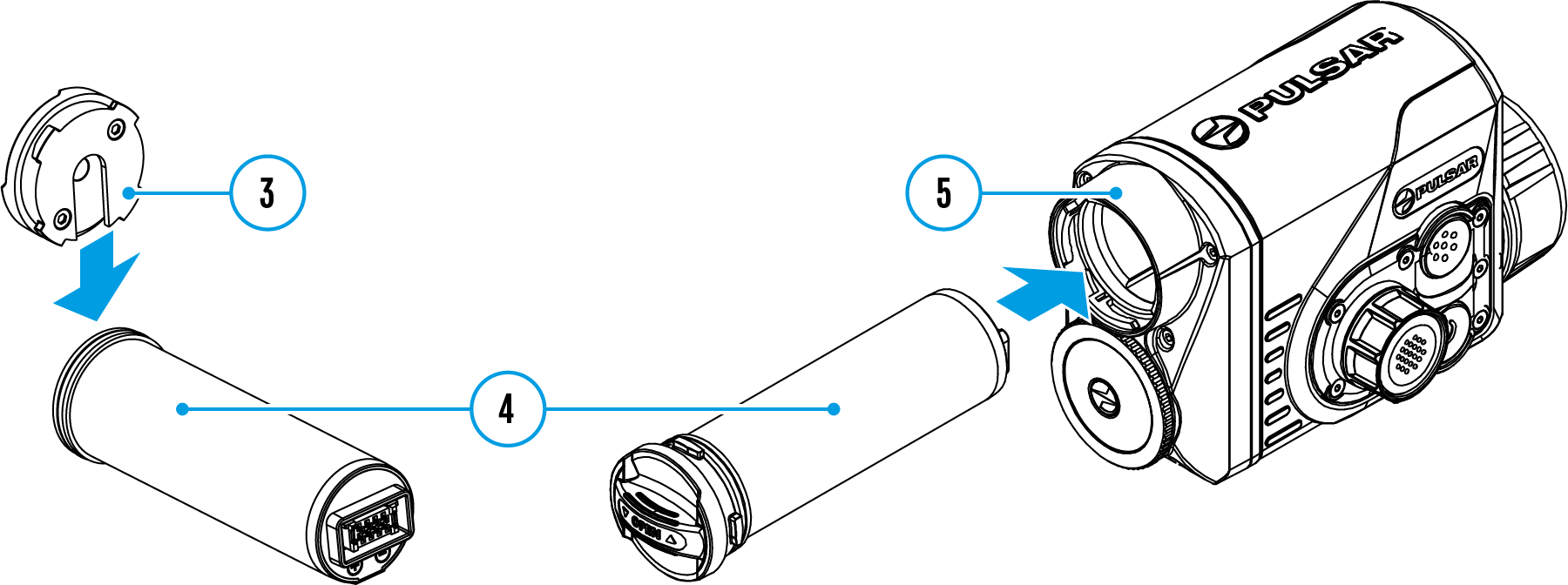

  1. Put the Lock-cover (3) on the rechargeable APS 5 battery (4).
  2. Insert the APS 5 battery (4) along the guide into the battery compartment (5).
  3. Lock the battery (4) by turning the Lock-cover (3) clockwise until it stops.
  4. Turn the Lock-cover (3) counter-clockwise to remove the battery (4).
